Description
template<class Graph, class Order, class Direction>
class Sawyer::Container::Algorithm::GraphVertexTraversal< Graph, Order, Direction >
Base class for graph vertex traversals.
Vertex traversals increment their current position stopping only when a vertex is entered. They have dereference ("*") and arrow ("->") operators and a next method that return vertex nodes from the graph.
Definition at line 950 of file GraphTraversal.h.
#include <GraphTraversal.h>

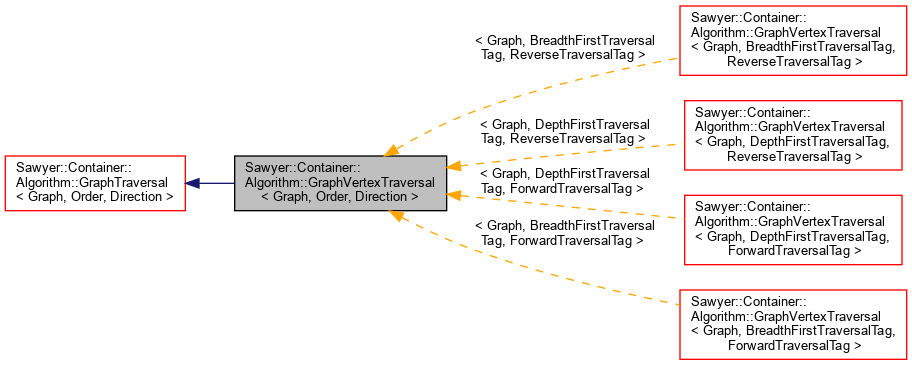

Inheritance diagram for Sawyer::Container::Algorithm::GraphVertexTraversal< Graph, Order, Direction >:
Collaboration diagram for Sawyer::Container::Algorithm::GraphVertexTraversal< Graph, Order, Direction >:
Public Member Functions | |
| GraphTraits< Graph >::VertexIterator::Reference | operator* () |
| Return reference to current vertex. | |
| GraphTraits< Graph >::VertexIterator::Pointer | operator-> () |
| Return pointer to current vertex. | |
| GraphTraits< Graph >::VertexIterator::Reference | next () |
| Return reference to current vertex and advance. | |
 Public Member Functions inherited from Sawyer::Container::Algorithm::GraphTraversal< Graph, Order, Direction > | |
| GraphTraversal (Graph &graph, unsigned significantEvents) | |
| Construct traversal for graph. More... | |
| void | start (VertexIterator startVertex) |
| Restart the traversal at the specified vertex. | |
| void | start (EdgeIterator startEdge) |
| Restart the traversal at the specified edge. | |
| Graph & | graph () const |
| The graph over which iteration occurs. More... | |
| TraversalEvent | event () const |
| Current event on which traversal is stopped. More... | |
| VertexIterator | vertex () const |
| Vertex to which traversal is pointing. More... | |
| EdgeIterator | edge () const |
| Edge to which traversal is pointing. More... | |
| bool | isAtEnd () const |
| Returns true when traversal reaches the end. More... | |
| bool | hasNext () const |
| Returns true when a traversal can be advanced. More... | |
| TraversalEvent | advance () |
| Advance traversal to next interesting event. More... | |
| void | skipChildren () |
| Causes traversal to skip children. More... | |
| void | allowRediscovery (VertexIterator vertex) |
| Allow a vertex to be discovered again. More... | |
| bool | isDiscovered (VertexIterator vertex) const |
| True if the vertex has been discovered. More... | |
| bool | isVisited (EdgeIterator edge) const |
| True if the edge has been entered. More... | |
| operator unspecified_bool () const | |
| Type for Boolean context. More... | |
| void | mapVertices (Functor &f) |
| Call the specified functor for each vertex. More... | |
| void | mapVertices (const Functor &f) |
| Call the specified functor for each vertex. More... | |
| void | mapEdges (Functor &f) |
| Call the specified functor for each edge. More... | |
| void | mapEdges (const Functor &f) |
| Call the specified functor for each edge. More... | |
Protected Member Functions | |
| GraphVertexTraversal (Graph &graph) | |
| Protected Member Functions inherited from Sawyer::Container::Algorithm::GraphTraversal< Graph, Order, Direction > | |
| Work & | current () |
| const Work & | current () const |
| bool | isSignificant (TraversalEvent event) const |
| void | setDiscovered (VertexIterator vertex, bool isDiscovered=true) |
| void | setVisited (EdgeIterator edge, bool isVisited=true) |
| void | clear () |
Additional Inherited Members | |
| Public Types inherited from Sawyer::Container::Algorithm::GraphTraversal< Graph, Order, Direction > | |
| typedef Graph | Graph |
| typedef GraphTraits< Graph >::VertexIterator | VertexIterator |
| Const or non-const vertex node iterator. | |
| typedef GraphTraits< Graph >::EdgeIterator | EdgeIterator |
| Const or non-const edge node iterator. | |
| Protected Types inherited from Sawyer::Container::Algorithm::GraphTraversal< Graph, Order, Direction > | |
| typedef std::list< Work > | WorkList |
| Protected Attributes inherited from Sawyer::Container::Algorithm::GraphTraversal< Graph, Order, Direction > | |
| WorkList | workList_ |
The documentation for this class was generated from the following file:
