Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction > Class Template Reference

Description

template<class G, class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
class Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >

Base class for graph traversals.

Graph traversals are similar to single-pass, forward iterators in that a traversal object points to a particular node (vertex or edge) in a graph and supports dereference and increment operations. The dereference operator returns a reference to the node and the increment operator advances the traversal object so it points to the next node.

Traversals come in a variety of dimensions:

Regardless of the type of traversal, it will normally visit each reachable vertex and edge exactly one time. However, the user may adjust the visited state of vertices and edges during the traversal, may change the current position of the traversal, and may cause the traversal to skip over parts of a graph.

The basic traversal advancing operation is the advance method upon which other advancing methods and operators are built. When a traversal is constructed the user (or a subclass) supplies a set of events that are of interest and the advance method will return control when any of those event points are reached. For instance, in a traversal that's being used to calculate which vertices are reachable from an initial vertex the user is probably only interested in ENTER_VERTEX events. When control is returned to the user the event, vertex, and edge methods can be used to get information about why and where the traversal stopped. The isAtEnd method will indicate whether the traversal is completed.

The following subclasses are implemented. Their names follow the pattern Order, Direction, Visiter. For instance "DepthFirstForwardEdgeTraversal" visits nodes in a "DepthFirst" order, follows edges in their natural forward direction (from source to target), stops only at ENTER_EDGE events, and returns edges when dereferenced. The orders are "DepthFirst" or "BreadthFirst". The directions are "Forward" and "Reverse". The visitors are "Edge" (only ENTER_EDGE events), "Vertex" (only ENTER_VERTEX events), and "Graph" (user specified events defaulting to all events).

Although graph traversals have functionality similar to iterators, there are some important differences to keep in mind:

Examples

The examples in this section assume the following context:

#include <Sawyer/GraphTraversal.h>
using namespace Sawyer::Container;
typedef ... MyVertexType; // User data for vertices; any default-constructable, copyable type
typedef ... MyEdgeType; // Ditto for edges. These can be Sawyer::Nothing if desired.
MyGraph graph;

This example shows how to build a reachability vector. The vector is indexed by vertex ID number and is true when the vertex is reachable from the starting vertex by following edges in their natural direction. The starting point is a vertex, but it could just as well have been an edge that points to the first vertex. One could also create edge reachability vectors by using an edge traversal instead. The next method returns the current vertex and advances the traversal to the next vertex.

MyGraph::VertexIterator startingVertex = ....;
std::vector<bool> reachable(graph.nVertices(), false);
DepthFirstForwardVertexTraversal<MyGraph> traversal(graph, startingVertex);
while (traversal.hasNext())
reachable[traversal.next().id()] = true;

A more typical C++ iterator paradigm can be used instead. However, traversals are not comparable and there is no "end" traversal like there is for iterators. Evaluating a traversal in Boolean context returns true unless the traversal is at the end. Here's the same loop again:

typedef DepthFirstForwardVertexTraversal<MyGraph> Traversal;
for (Traversal traversal(graph, start); traversal; ++traversal)
reachable[traversal->id()] = true;

The traversals whose names end with "GraphTraversal", such as DepthFirstForwardGraphTraversal, can be used if one needs to gain control more frequently than just entering vertices. For instance, one can count the depth of a vertex in a depth-first traversal by getting control on both ENTER_VERTEX and LEAVE_VERTEX events, like this:

typedef DepthFirstForwardGraphTraversal<MyGraph> Traversal;
size_t depth = 0;
std::vector<size_t> depthOfVertex(graph.nVertices(), 0);
for (Traversal t(graph, start, ENTER_VERTEX|LEAVE_VERTEX); t; ++t) {
if (t.event()==ENTER_VERTEX) {
++depth;
} else {
depthOfVertex[t.vertex()->id()] = --depth;
}
}

All traversals support skipping over parts of the graph by using the skipChildren method. If this method is called during an ENTER_VERTEX event then no edges of that vertex are visited, and if called during an ENTER_EDGE event, then no neighbor vertex is discovered at the far end of the edge (although it might be discovered by other edges). For instance, the following code computes a vertex reachability vector for a control flow graph but does not follow edges that are marked as function calls. The value method returns a reference to a MyEdgeType (see typedef example above) which we assume has a isFunctionCall method.

MyGraph::VertexIterator startingVertex = ...;
std::vector<bool> reachable(graph.nVertices(), false);
typedef DepthFirstForwardGraphTraversal<MyGraph> Traversal;
for (Traversal t(graph, startingVertex, ENTER_EVENTS); t; ++t) {
if (t.event() == ENTER_VERTEX) {
reachable[t.vertex()->id()] = true;
} else if (t.edge()->value().isFunctionCall()) {
ASSERT_require(t.event() == ENTER_EDGE);
t.skipChildren();
}
}

Traversals are suitable for using in generic functions as well. For instance, the next example is a generic function that prints a graph using a depth-first traversal. It operates on const or non-const graphs for demonstration purposes; in real life one might advertise that the function doesn't modify the graph by having an explicit const qualifier. The GraphTraits is used to obtain the appropriate const/non-const vertex iterator type.

template<class Graph>
void printGraph(std::ostream &out, Graph &graph,
for (DepthFirstForwardGraphTraversal t(graph, start, ENTER_EVENTS); t; ++t) {
if (t.event() == ENTER_VERTEX) {
out <<"vertex " <<t->vertex()->id() <<"\t= " <<t->vertex()->value() <<"\n";
} else {
ASSERT_require(t.event() == ENTER_EDGE);
out <<"edge " <<t->edge()->id() <<"\t= " <<t->edge()->value() <<"\n";
}
}
}

The following example shows one way to construct a new graph from an existing graph. Although graphs can be copy constructed from related graphs as long as the destination graph's vertices and edges can be copy constructed from the source graph's vertices and edges, this is not always the situation encountered. One often needs to construct a new graph whose edges and vertices cannot be copy constructed, where certain edges or vertices should not be copied, or where certain extra vertices or edges need to be inserted. A combination of traversal and vertex lookup tables can be convenient in this situation. For instance, consider a program control flow graph (CFG) where each vertex represents a sequence of machine instructions and each edge is a possible transfer of control. Assume that the source graph has three edge types: INTERFUNC is an inter-function edge such as a function call, INTRAFUNC are function-internal edges, and ADJUST is a special kind of INTRAFUNC edge. We want to create a new graph that contains only vertices that belong to a single function, and any ADJUST edge in the source should result in an edge-vertex-edge in the destination where the vertex is marked as ADJUST. The destination graph edges carry no information and thus cannot be copy-constructed from the source graph's edges.

typedef Graph<CfgVertex, CfgEdge> Cfg;
typedef Graph<DfVertex> DfCfg;
typedef DepthFirstGraphTraversal<Cfg> Traversal;
Cfg cfg = ...;
Cfg::VertexIterator startVertex = ...;
DfCfg dfCfg;
for (Traversal t(cfg, startVertex, ENTER_EVENTS|LEAVE_EDGE); t; ++t) {
if (t.event() == ENTER_VERTEX) {
// Insert each vertex before we visit any edge going into that vertex
DfCfg::VertexIterator v = dfCfg.insertVertex(NORMAL);
vmap.insert(t.vertex()->id(), v);
} else if (t.event() == ENTER_EDGE && t.edge()->value().type() == INTERFUNC) {
// Don't traverse edges that cross function boundaries
t.skipChildren();
} else if (vmap.exists(t.edge()->source()->id()) && vmap.exists(t.edge()->target()->id())) {
// Insert an edge provided we have both of its endpoints
DfCfg::VertexIterator source = vmap[t.edge()->source()->id()];
DfCfg::VertexIterator target = vmap[t.edge()->target()->id()];
if (t.edge()->value().type() == ADJUST) {
DfCfg::VertexIterator v = dfCfg.insertVertex(ADJUST);
dfCfg.insertEdge(source, v);
dfCfg.insertEdge(v,target);
} else {
dfCfg.insertEdge(source,target);
}
}
}

Definition at line 389 of file GraphTraversal.h.

#include <GraphTraversal.h>

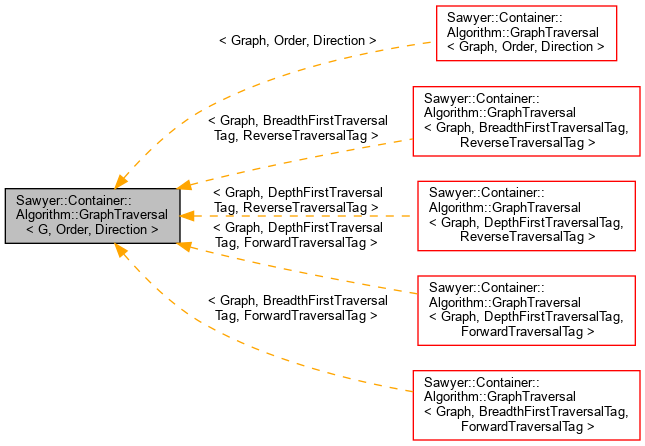

Inheritance diagram for Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >:
Inheritance graph
[legend]
Collaboration diagram for Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >:
Collaboration graph
[legend]

Classes

struct  Work


Public Types

typedef G Graph

typedef GraphTraits< Graph >::VertexIterator VertexIterator
 Const or non-const vertex node iterator.

typedef GraphTraits< Graph >::EdgeIterator EdgeIterator
 Const or non-const edge node iterator.


Public Member Functions

 GraphTraversal (Graph &graph, unsigned significantEvents)
 Construct traversal for graph. More...

void start (VertexIterator startVertex)
 Restart the traversal at the specified vertex.

void start (EdgeIterator startEdge)
 Restart the traversal at the specified edge.

Graph & graph () const
 The graph over which iteration occurs. More...

TraversalEvent event () const
 Current event on which traversal is stopped. More...

VertexIterator vertex () const
 Vertex to which traversal is pointing. More...

EdgeIterator edge () const
 Edge to which traversal is pointing. More...

bool isAtEnd () const
 Returns true when traversal reaches the end. More...

bool hasNext () const
 Returns true when a traversal can be advanced. More...

TraversalEvent advance ()
 Advance traversal to next interesting event. More...

void skipChildren ()
 Causes traversal to skip children. More...

void allowRediscovery (VertexIterator vertex)
 Allow a vertex to be discovered again. More...

bool isDiscovered (VertexIterator vertex) const
 True if the vertex has been discovered. More...

bool isVisited (EdgeIterator edge) const
 True if the edge has been entered. More...

 operator unspecified_bool () const
 Type for Boolean context. More...

template<class Functor >
void mapVertices (Functor &f)
 Call the specified functor for each vertex. More...

template<class Functor >
void mapVertices (const Functor &f)
 Call the specified functor for each vertex. More...

template<class Functor >
void mapEdges (Functor &f)
 Call the specified functor for each edge. More...

template<class Functor >
void mapEdges (const Functor &f)
 Call the specified functor for each edge. More...


Protected Types

typedef std::list< WorkWorkList


Protected Member Functions

Workcurrent ()

const Workcurrent () const

bool isSignificant (TraversalEvent event) const

void setDiscovered (VertexIterator vertex, bool isDiscovered=true)

void setVisited (EdgeIterator edge, bool isVisited=true)

void clear ()


Protected Attributes

WorkList workList_


Constructor & Destructor Documentation

◆ GraphTraversal()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::GraphTraversal ( Graph &  graph,
unsigned  significantEvents
)
inline

Construct traversal for graph.

This traversal will stop at the specified events. You must call the start method before using the traversal. This constructor is normally called from subclasses that call start as part of their constructors.

Definition at line 431 of file GraphTraversal.h.

Member Function Documentation

◆ graph()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
Graph& Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::graph ( ) const
inline

The graph over which iteration occurs.

The connectivity of this graph should not be modified while the traversal is in progress.

Definition at line 502 of file GraphTraversal.h.

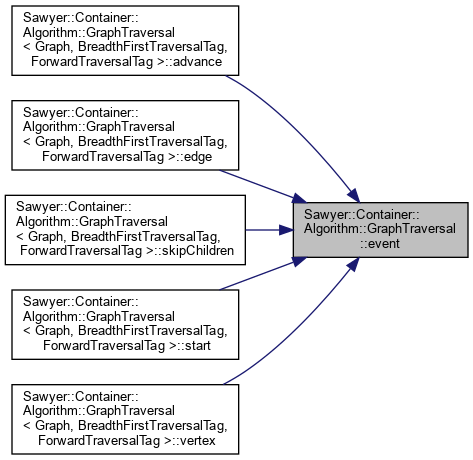

◆ event()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
TraversalEvent Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::event ( ) const
inline

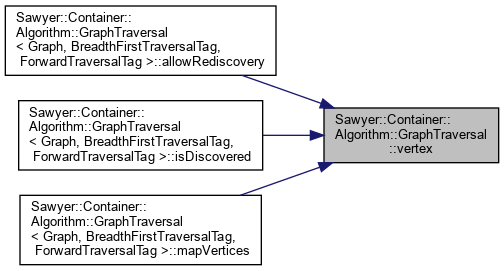

◆ vertex()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
VertexIterator Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::vertex ( ) const
inline

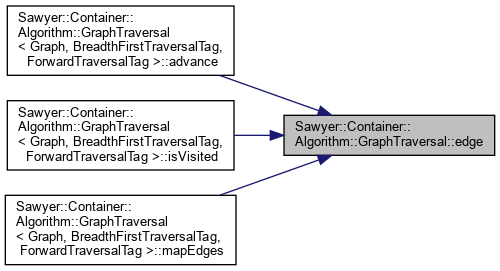

◆ edge()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
EdgeIterator Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::edge ( ) const
inline

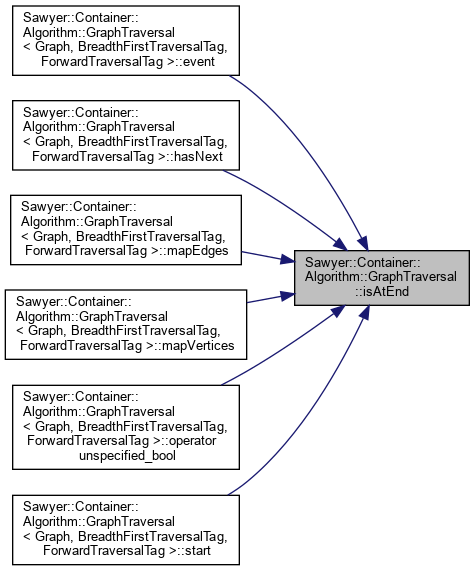

◆ isAtEnd()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
bool Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::isAtEnd ( ) const
inline

◆ hasNext()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
bool Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::hasNext ( ) const
inline

Returns true when a traversal can be advanced.

The hasNext return value is the inverse of what isAtEnd returns. This predicate is often used with the next method in subclasses that have one:

Traversal t(graph, start);
while (t.hasNext())
f(t.next());

An iterator evaluated in a Boolean context will return a value equivalent to what hasNext returns:

for (Traversal t(graph, start); t; ++t) ...

Definition at line 584 of file GraphTraversal.h.

◆ advance()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
TraversalEvent Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::advance ( )
inline

Advance traversal to next interesting event.

The traversal advances until it reaches a state that is deemed to be interesting to the user according to the list of event types supplied when the traversal was created. It then returns the event that was reached. Most subclasses define the list of interesting events themselves. For instance, an edge traversal will probably only be interested in ENTER_EDGE events.

Returns a valid event type on success, or NO_EVENT when the traversal reaches the end state.

Definition at line 596 of file GraphTraversal.h.

Referenced by Sawyer::Container::Algorithm::GraphTraversal< Graph, BreadthFirstTraversalTag, ForwardTraversalTag >::mapEdges(), Sawyer::Container::Algorithm::GraphTraversal< Graph, BreadthFirstTraversalTag, ForwardTraversalTag >::mapVertices(), and Sawyer::Container::Algorithm::GraphTraversal< Graph, BreadthFirstTraversalTag, ForwardTraversalTag >::start().

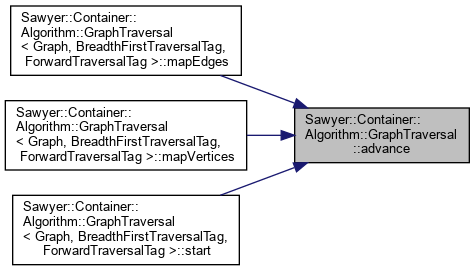

Here is the caller graph for this function:

◆ skipChildren()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::skipChildren ( )
inline

Causes traversal to skip children.

If the current event is ENTER_VERTEX then no edges will be followed out of the current vertex. If the current event is ENTER_EDGE then no vertex will be discovered from the current edge (but it might still be discovered by some other edge). This method cannot be called in any other state.

Definition at line 683 of file GraphTraversal.h.

◆ allowRediscovery()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::allowRediscovery ( VertexIterator  vertex)
inline

Allow a vertex to be discovered again.

Under normal operation, once a vertex is discovered all of its incoming or outgoing edges (depending on the traversal direction) are inserted into the worklist. This discovery normally happens once per vertex. However, the vertex can be forgotten so that if it's ever discovered by some other edge its incoming or outgoing edges will be inserted into the worklist again. Calling allowRediscovery each time a traversal leaves a vertex during a depth-first traversal will result in a traversal that finds all non-cyclic paths, possibly visiting some vertices more than once.

Definition at line 710 of file GraphTraversal.h.

◆ isDiscovered()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
bool Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::isDiscovered ( VertexIterator  vertex) const
inline

True if the vertex has been discovered.

Returns true if the specified vertex has ever existed on the work list. Vertices are normally discovered between the ENTER_EDGE and LEAVE_EDGE events for the edge that flows into the vertex, and are only discovered once regardless of how many edges flow into them.

Definition at line 724 of file GraphTraversal.h.

Referenced by Sawyer::Container::Algorithm::GraphTraversal< Graph, BreadthFirstTraversalTag, ForwardTraversalTag >::advance().

Here is the caller graph for this function:

◆ isVisited()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
bool Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::isVisited ( EdgeIterator  edge) const
inline

True if the edge has been entered.

Returns true if the traversal has ever returned a ENTER_EDGE event for the specified edge.

Definition at line 733 of file GraphTraversal.h.

Referenced by Sawyer::Container::Algorithm::GraphTraversal< Graph, BreadthFirstTraversalTag, ForwardTraversalTag >::advance().

Here is the caller graph for this function:

◆ mapVertices() [1/2]

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
template<class Functor >
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::mapVertices ( Functor &  f)
inline

Call the specified functor for each vertex.

Iterates over the traversal invoking the functor on the current vertex at each step.

Definition at line 745 of file GraphTraversal.h.

◆ mapVertices() [2/2]

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
template<class Functor >
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::mapVertices ( const Functor &  f)
inline

Call the specified functor for each vertex.

Iterates over the traversal invoking the functor on the current vertex at each step.

Definition at line 752 of file GraphTraversal.h.

◆ mapEdges() [1/2]

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
template<class Functor >
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::mapEdges ( Functor &  f)
inline

Call the specified functor for each edge.

Iterates over the invoking the functor on the current edge at each step.

Definition at line 766 of file GraphTraversal.h.

◆ mapEdges() [2/2]

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
template<class Functor >
void Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::mapEdges ( const Functor &  f)
inline

Call the specified functor for each edge.

Iterates over the invoking the functor on the current edge at each step.

Definition at line 773 of file GraphTraversal.h.

◆ operator unspecified_bool()

template<class G , class Order = DepthFirstTraversalTag, class Direction = ForwardTraversalTag>
Sawyer::Container::Algorithm::GraphTraversal< G, Order, Direction >::operator unspecified_bool ( ) const
inline

Type for Boolean context.

Implicit conversion to a type that can be used in a boolean context such as an if or while statement. For instance:

typedef DepthFirstForwardVertexTraversal<MyGraph> Traversal;
for (Traversal t(graph, startVertex); t; ++t)
reachable[t->id()] = true;

Definition at line 797 of file GraphTraversal.h.


The documentation for this class was generated from the following file:
Sawyer::Container::Algorithm::ENTER_EDGE
@ ENTER_EDGE
Edge is entered.
Definition: GraphTraversal.h:44
Sawyer::Container::Algorithm::GraphTraversal::graph
Graph & graph() const
The graph over which iteration occurs.
Definition: GraphTraversal.h:502
Sawyer::Container::Graph
Graph containing user-defined vertices and edges.
Definition: Graph.h:625
Sawyer::Container::Algorithm::GraphTraversal::start
void start(VertexIterator startVertex)
Restart the traversal at the specified vertex.
Definition: GraphTraversal.h:474
Sawyer::Container::Algorithm
Algorithms that operate on container classes.
Definition: GraphAlgorithm.h:41
Map::exists
bool exists(const Key &key) const
Convenience for determining if a key exists in this map.
Definition: Map.h:89
Sawyer::Container
Container classes that store user-defined values.
Definition: AddressMap.h:35
Sawyer::Container::Algorithm::LEAVE_VERTEX
@ LEAVE_VERTEX
Leaving vertex.
Definition: GraphTraversal.h:60
Sawyer::Container::Algorithm::LEAVE_EDGE
@ LEAVE_EDGE
Leaving edge.
Definition: GraphTraversal.h:54
Map
Extends std::map with methods that return optional values.
Definition: Map.h:10
Sawyer::Container::Algorithm::ENTER_VERTEX
@ ENTER_VERTEX
Vertex entered for first time.
Definition: GraphTraversal.h:41
Sawyer::Container::GraphTraits< Graph >::VertexIterator
Graph ::VertexIterator VertexIterator
Const or non-const vertex iterator.
Definition: Graph.h:295
